Study on decelerating and spinning efficiency of vortex ring parachute system
-

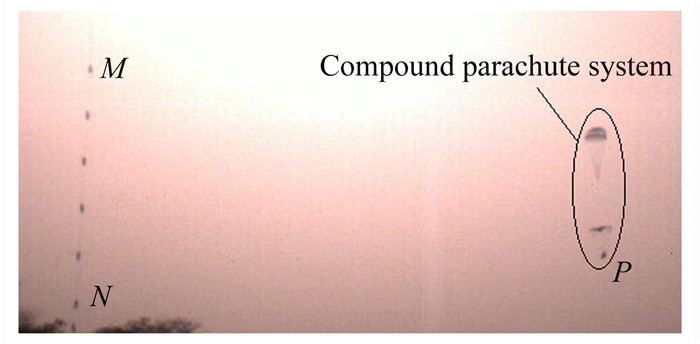

摘要: 为了解涡环旋转伞的减速导旋特性，提高旋转伞系统的减速导旋效率，以满足某些载物工作状态对转速、落速的苛刻需求，设计一种由涡环旋转伞和圆形减速伞构成的组合伞系统。制作单伞系统和组合伞系统的试验模型，分别进行伞塔试验。基于伞塔试验的高速摄影和图像处理技术，提取伞物系统的弹道数据点，结合弹道模型，用最小二乘法拟合时间弹道数据，得到单伞系统和组合伞系统的极限速度和阻力特征。基于姿态存储测量法，获得伞物系统的转速变化规律。对单伞系统和组合伞系统的弹道规律及减速导旋效率等数据进行对比分析，提出可有效提高旋转伞系统转速落速比的方法。结果表明：对高速录像进行图像处理可简单快速有效地提取伞物系统的极限速度和阻力特征；单具涡环旋转伞可提供更大扭矩，使载物旋转加速度更大，其导旋效率高；组合伞可提供更大阻力，使载物极限落速更低，其减速效率高；组合伞系统的转速落速比更大，整体性能优于单伞系统。Abstract: To understand the decelerating and spinning characteristics of vortex ring parachute, increase the decelerating and spinning efficiency of rotating parachute system, and satisfy the harsh demand of limiting falling speed and rotating speed for some payloads at specific working state, a compound parachute system composed of a circle drag parachute and a vortex ring parachute was designed. The test models of single parachute system and compound parachute system were made out, and then two tower tests were carried out separately. Based on high speed photography of parachute tower test and image processing technology, the trajectory data points of the parachute-payload system were extracted. Combining with the trajectory model, the time and trajectory data was fitted by least square method, the limiting falling speed and the resistance characteristics of the system were obtained. Using attitude memory-measuring technology, the rotating speed changing law of parachute-payload system was gained. The trajectory laws and the decelerating and spinning efficiency of the vortex ring parachute and the compound parachute system were analyzed contrastively, and then the method to increase the ratio of rotating speed and limiting falling speed availably was proposed. The results show that through processing the pictures shot by high-speed camera, the limiting falling speed and resistance characteristics of the parachute-payload system can be extracted quickly and efficiently. The single vortex ring parachute could provide bigger torque so that the rotating accelerating of the payload is higher, which means that the spinning efficiency is better. The compound parachute could bigger resistance so that the limiting falling speed of the payload is lower, which means that the decelerating efficiency is better. The radio of rotating speed and falling speed of compound parachute system is bigger than that of single parachute system, which means that the whole performance of compound parachute system is better.
-
表 1 伞物系统主要运动数据
Table 1. Main motional data of parachute-payload system
系统 V/(m·s-1) (CpSp+CdSd) ωb(r/s) ωb/V 单伞 10.84 1.36 3.66 0.338 组合伞 9.56 1.75 3.60 0.377
下载: 导出CSV
-
[1] 王利荣.降落伞理论与应用[M].北京:宇航出版社, 1997Wang L R. The theory and application of parachute[M]. Peking:Aerospace press, 1997. (in Chinese) [2] Ewing E G, Bixbu H W, Knacke T W. Recovery systems design guide[R]. AD A070251, Dec, 1978. [3] Pillasch D W, Shen Y C. Parachute/submunition system coupled dynamics[R]. AIAA-84-0875, 1984. [4] Doherr K F. Nine-degree-of-freedom simulation of rotating parachute systems[J]. Journal of Aircraft, 1992, 29(5):774-781. doi: 10.2514/3.46245 [5] Guo R, Liu R Z, Huang F F, et al. Study on the decelerating and rotating dynamics model for a certain rotating parachute system[C]//Third International Conference on Information and Computing, 2010:216-218. [6] 刘世平, 韩子鹏.末敏弹旋转伞-弹系统阻力模型研究[J].兵工学报, 1997, 18(3):221-225. http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO199703006.htmLiu S P, Han Z P. A drag model for parachute-projectile systems of sensor-fuzed munitions[J]. Acta Armamentarii, 1997, 18(3):221-225. (in Chinese) http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO199703006.htm [7] 唐乾刚, 张青斌, 张晓今, 等.伞-弹系统九自由度动力学模型[J].兵工学报, 2007, 28(4):449-452. http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO200704013.htmTang Q G, Zhang Q B, Zhang X J, et al. Nine-degree-of-freedom model of bomb-parachute system[J]. Acta Armamentarii, 2007, 28(4):449-452. (in Chinese) http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO200704013.htm [8] 唐乾刚, 王昱, 张青斌, 等.伞-弹动力学及运动学在末敏弹目标识别中的应用[J].兵工学报, 2007, 28(7):796-799. http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO200707009.htmTang Q G, Wang Y, Zhang Q B, et al. Application of dynamics and kinematics of parachute-bomb system in target identification for a target sensitive projectile[J]. Acta Armamentarii, 2007, 28(7):796-799. (in Chinese) http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO200707009.htm [9] 郭锐, 刘荣忠.末敏弹刚柔耦合系统动力学模型及仿真[J].兵工学报, 2007, 28(1):10-14. http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO200701002.htmGuo R, Liu R Z. Dynamics model and simulation of rigid and flexible coupling system for terminal-sensitive submunition[J]. Acta Armamentarii, 2007, 28(1):10-14. (in Chinese) http://www.cnki.com.cn/Article/CJFDTOTAL-BIGO200701002.htm [10] 殷克功.末敏子弹运动特性分析研究[D].南京理工大学, 2008.Yin K G. Study on the motion characteristic of terminal-sensitive submunition[D]. Nanjing University of Science and Technology, 2008. (in Chinese) [11] 郭锐, 刘荣忠, 胡志鹏, 等.涡环旋转伞开伞稳定性及减速导旋运动特性研究[J].空气动力学学报, 2013, 31(6):733-738. http://www.kqdlxxb.com/CN/abstract/abstract11381.shtmlGuo R, Liu R Z, Hu Z P, et al. Study on the inflated stability and motional characteristics of vortex ring parachute canopy[J]. Acta Aerodynamica Sinica, 2013, 31(6):733-738. (in Chinese) http://www.kqdlxxb.com/CN/abstract/abstract11381.shtml [12] 张延教.高等动力学[M].南京:南京理工大学出版社, 2003.Zhang Y J. Advanced dynamics[M]. Nanjing:Nanjing University of Science and Technology Press, 2003. [13] 王正勤, 刘富强.自适应背景崎岖算法的比较[J].计算机工程, 2008, 34(23):220-223. http://www.cnki.com.cn/Article/CJFDTOTAL-JSJC200823080.htmWang Z Q, Liu F Q. Comparison of adaptive extract algorithm of object scene[J]. Computer Engineer, 2008, 34(23):220-223. (in Chinese) http://www.cnki.com.cn/Article/CJFDTOTAL-JSJC200823080.htm [14] 范盈, 郭成安.一种运动图像的检测与识别技术[J].大连理工大学学报, 2004, 44(1):122-126. http://www.cnki.com.cn/Article/CJFDTOTAL-DLLG200401026.htmFan Y, Guo C G. A method for detection and recognition of moving objects in sequential images[J]. Journal of Dalian University of Technology, 2004, 44(1):122-126. http://www.cnki.com.cn/Article/CJFDTOTAL-DLLG200401026.htm [15] 刘贵喜, 绍明礼, 刘先红, 等.真实场景下视频运动目标自动提取方法[J].光学学报, 2006, 26(8):1150-1155. http://www.cnki.com.cn/Article/CJFDTOTAL-GXXB200608006.htmLiu G X, Shao M L, Liu X H, et al. Video moving object auto-extraction in real scene[J]. Acta Optica Sinica, 2006, 26(8):1150-1155. (in Chinese) http://www.cnki.com.cn/Article/CJFDTOTAL-GXXB200608006.htm [16] 胡志鹏, 刘荣忠, 郭锐, 等.基于弹丸图像的末敏弹阻力系数计算方法[J].探测与控制学报, 2012, 34(3):8-12. http://www.cnki.com.cn/Article/CJFDTOTAL-XDYX201203001.htmHu Z P, Liu R Z, Guo R, et al. TSP drag coefficient calculation based on projectile image processing[J]. Journal of Detection & Control, 2012, 34(3):8-12. (in Chinese) http://www.cnki.com.cn/Article/CJFDTOTAL-XDYX201203001.htm [17] 万建伟, 熊栋梁, 皇甫堪.弹丸阻力系数CD的Robust估计[J].兵工学报, 1991(1):21-28. http://www.cnki.com.cn/Article/CJFDTotal-BIGO199101004.htmWan J W, Xiong D L, Huang F K. Robust estimation for the coefficient of resistance CD[J]. Acta Armamentarii, 1991(1):21-28. (in Chinese) http://www.cnki.com.cn/Article/CJFDTotal-BIGO199101004.htm -
